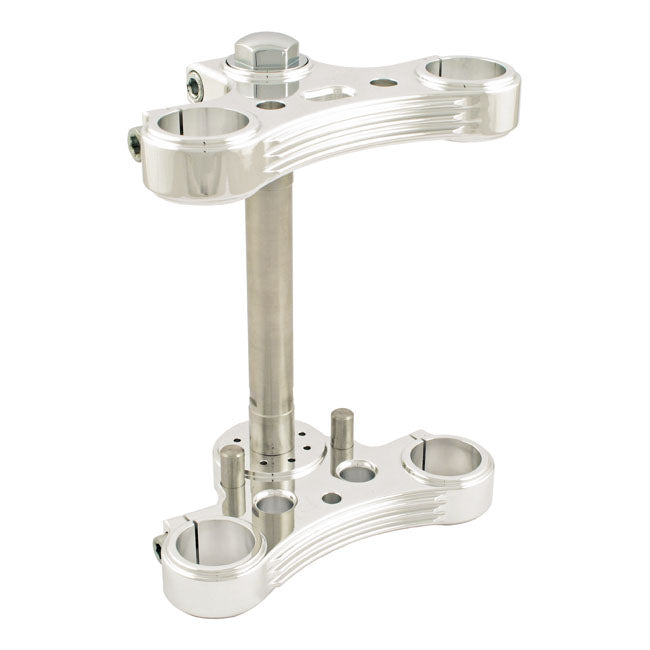

Kustom Tech Extra Narrow 39Mm Triple Trees - Polished

Kustom Tech Extra Narrow 39Mm Triple Trees - Polished is a triple tree part for custom motorcycle builds, repairs and upgrades.

With hole for risers. Kustom Tech's billet CNC machined triple trees, for 39mm fork tubes, are super narrow. With just 146mm (5 3/4") centre to centre fork tubes they are 1 1/4" (31.75mm) narrower than stock Narrow Glide triple trees. Riser holes are 2 1/2" centre to centre, 1" closer together than stock. Comes complete with 1" diameter steering stem, bearings and external forks tops. Note 1: Make sure you will be able to mount the front wheel & brake set-up of your choice. Note 2: Trees come with external fork stops. Internal forks tops can be ordered separately, if required Note 3: Ribbed fork tube caps can be ordered separately and used with the 'No Hole' triple trees. They come with M34 x 1.5 thread. Handlebars can be welded to the fork tube caps and give an ultra clean look.

Fitment / notes: For models with 39mm fork tubes and regular risers

• Product family: Triple Trees
• Use area: Triple Trees 39Mm
• Suitable where the listed fitment matches.

SKU: 532412
