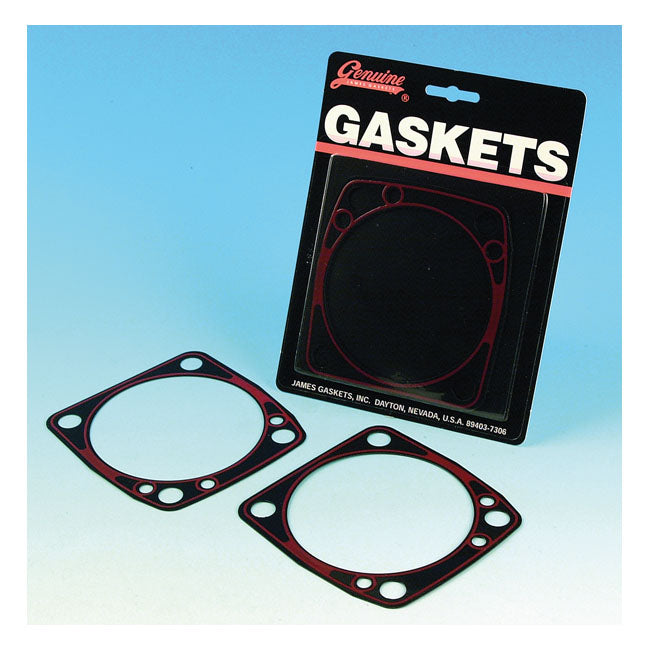

James Gaskets Gasket Set, Cylinder Base - RCM .022"

James Gaskets Gasket Set, Cylinder Base - RCM .022" is a practical replacement part for motorcycle service, repair or rebuild work.

.022" RCM (Rubber Coated Metal). Type ''A''. Final crush.020". James'' RCM gaskets consists of a.020" thick stainless spring steel base covered with a.001" thick heat resistant Viton rubber on both sides. A very strong gasket which requires no re-torquing. Gaskets will not become brittle or burn out. OEM replacement reference 16774-84A. Note: Type ''A'' and ''B'' Evolution base gaskets explained. There are 2 types of cylinder base gaskets for Evolution models available. For convenience sake we call them ''type A'' (early style) and ''type B'' (late style). - Type A'' gasket: Was introduced on the 1984 Evolution Big Twin models; and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly. They will fit 86-22 Evo XL; but stick out at the cylinder base. This can be a problem with silicone beaded base gaskets.- Type B'' gasket: Was introduced on Evolution XL Sportster models in 1986; and will fit all Evo XL models; but also all 84-99 Evo 1340cc models although the Big Twin cylinder base is a bit larger than the gasket. The ''type B'' is the only gasket type that ''The Factory'' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models.Both type ''A'' and type ''B'' have identical inner bore diameter; oil hole and stud hole locations. Gaskets for front & rear cylinder are identical. Only difference between the ''A'' & ''B'' gaskets is the outside perimeter.

Fitment / notes: 84-99 Evo Big Twin

• Product family: Cylinder Base Gaskets
• Use area: Gasket Sets Cylinder Base
• Suitable where the listed fitment matches.

SKU: 500340
